97.46093.22

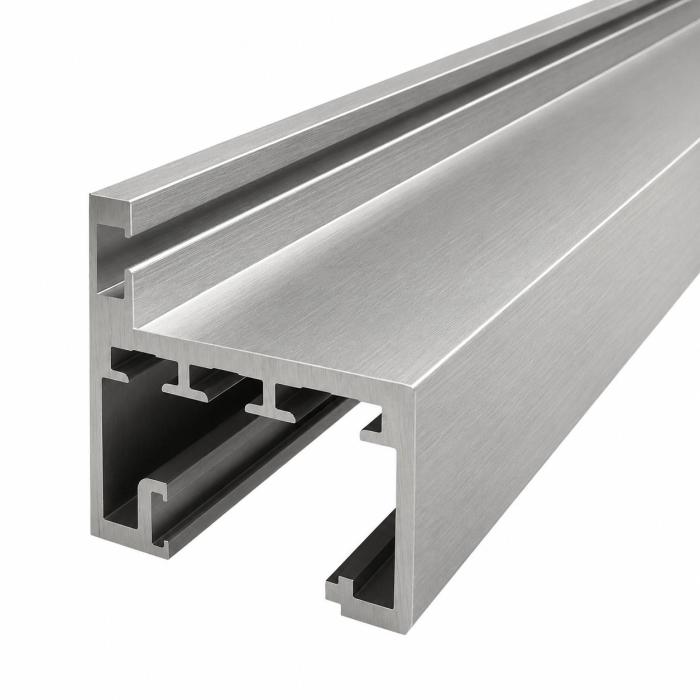

AUGUSTA ONE frame profile for glass connection, 28 x 42 mm, aluminium, natural anodized EV1, Glass thickness 8 - 12.76 mm, wall assembly, L = 5500 mm
General
| Material | aluminium |
| Finish | natural anodized EV1 |
| Mounting | wall assembly |
| Glass thickness | 8 - 12.76 mm |
| Sales unit (SU) | metre |
| Shape | square |

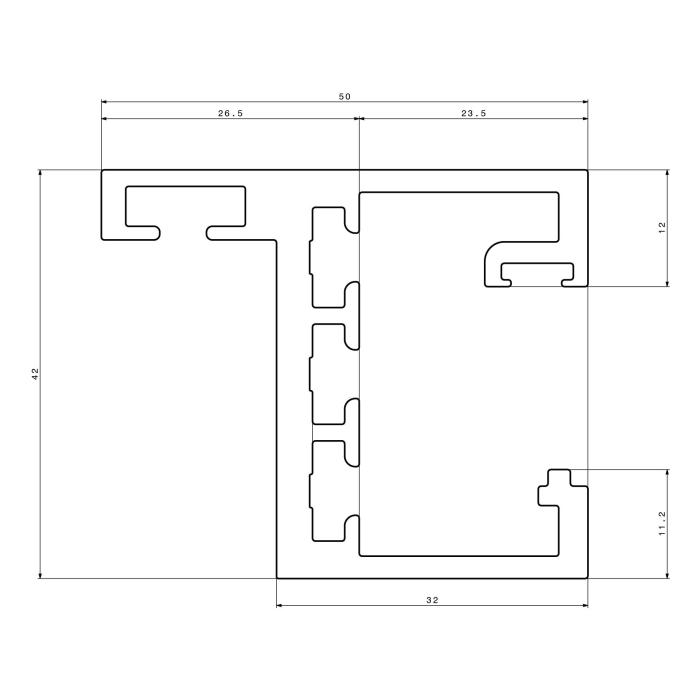

| Measures | 28 x 42 mm |
| Measure A | 28 mm |
| Measure B | 50 mm |
| Measure C | 42 mm |
| Measure D | 2 mm |
| Measure E | 10 mm |
| Measure F | 5550 mm |
| Measure G | 32 mm |
| Measure H | 15 mm |
| Bar length (L) | 5500 mm |
Description
for heavy-duty, self-supporting, sealing rubber must be ordered separately, corner connectors are supplied for mitred mounting
-
